Description

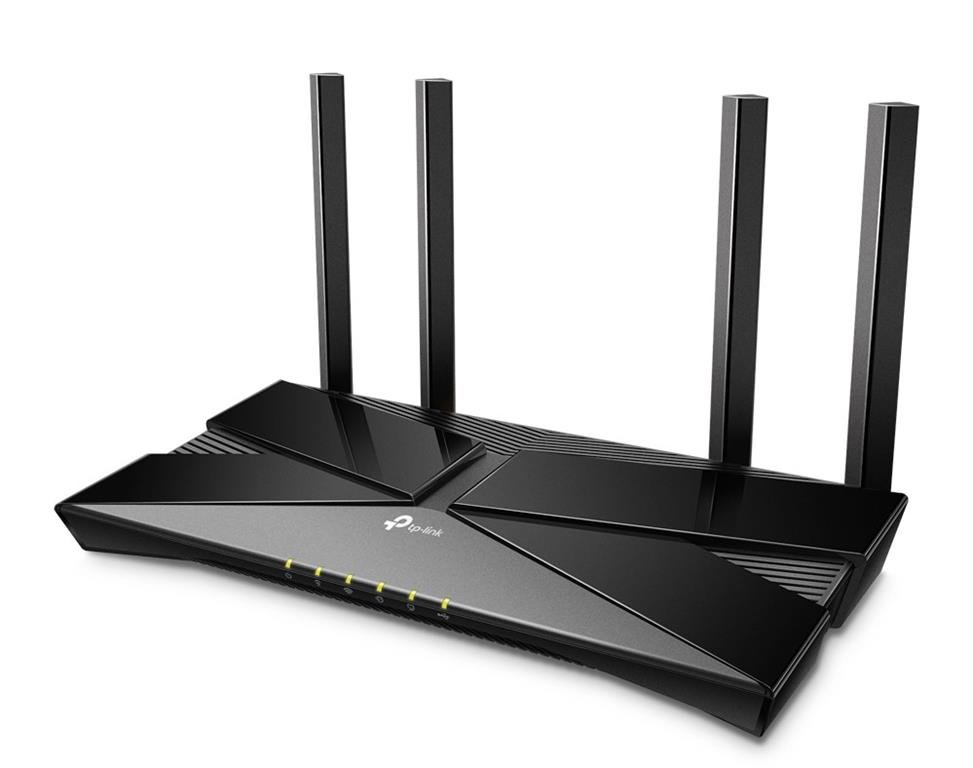

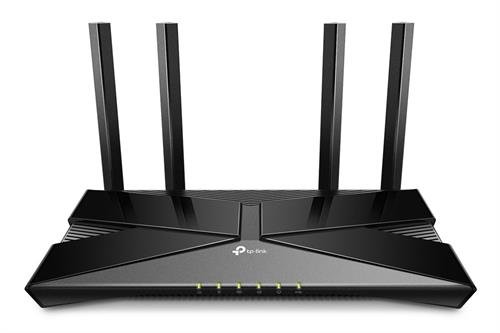

TP Link Archer AX20 AX1800 Dual-Band Wi-Fi 6 Router, Retail Box , 2 year Limited Warranty
Product Overview
Unleash the future of connectivity with our Dual-Band Wi-Fi 6 Router. Experience 1.8 Gbps† speeds for seamless streaming and gaming, while innovative OFDMA technology ensures smooth multi-device connections§. Powered by a 1.5 GHz quad-core CPU, enjoy extensive coverage and extended battery life with Target Wake Time technology.
- Super-Fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.†
- Connect More Devices – Communicates with more devices using OFDMA while simultaneously reducing lag.‡
- Broader Coverage – Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.§
- Next-Gen Platform – The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption.△
- Parental Controls – Enjoy the most versatile yet free parental controls features among all routers, including URL blocking, profile management, pausing, and more.
- Works with Most ISPs – Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.
- OneMesh – Use with OneMesh extenders to get whole-home coverage and enjoy smooth roaming between signals.
- Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App.
- Backward Compatible – Supports all previous 802.11 standards Wi-Fi devices.
| Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
|---|---|
| WiFi Speeds | AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses 4× Fixed High-Performance Antennas Beamforming High-Power FEM |
| WiFi Capacity | High Dual-Band OFDMA Airtime Fairness 4 Streams |
| Working Modes | Router Mode Access Point Mode |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
|---|---|
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Processor | 1.5 GHz Quad-Core CPU |
|---|---|

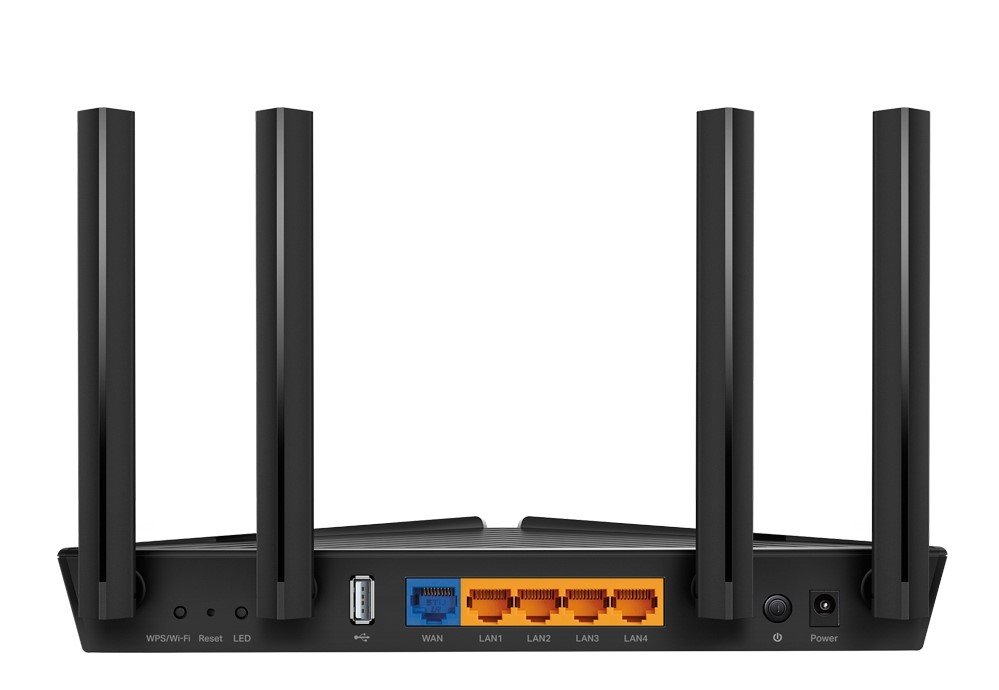

| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| USB Support | 1× USB 2.0 Port Supported Partition Formats: Supported Functions: |
| Buttons | WPS/Wi-Fi Button Power On/Off Button LED On/Off Button Reset Button |
| Power | 12 V ⎓ 1.5 A |
| Protocols | IPv4 IPv6 |
|---|---|
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management Features | Tether App Webpage Check Web Emulator> |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
|---|---|
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| WiFi Transmission Power | CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
|---|---|
| WiFi Reception Sensitivity | 5 GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm 11ax HE80_MCS11:-58dBm 2.4 GHz: 11g 6Mbps:-97dBm 11n HT20_MCS0:-97dBm 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm 11ax HE40_MCS11:-61dBm |
| Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
|---|---|
| Package Content | Wi-Fi Router Archer AX20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
