ARKTEK Radeon RX 580 8GB 256bit V3 Graphics Card

Description

The ARKTEK Radeon RX 580 8GB 256bit V3 is a dedicated graphics card powered by the AMD Radeon RX 580 GPU and equipped with 8GB of GDDR5 graphics memory on a 256-bit memory bus.

Featuring 2048 Stream Processors and a 1206MHz True Clock, the RX 580 V3 is designed to deliver capable graphics performance for gaming and demanding graphical applications. It supports PCI Express 3.0 and includes DisplayPort, Digital Output and DVI connectivity.

The card also supports AMD technologies including AMD FreeSync™, Virtual Super Resolution (VSR), AMD Eyefinity, AMD CrossFire™, Frame Rate Target Control (FRTC), AMD PowerTune, AMD ZeroCore Power and AMD TrueAudio.

Key Features

• AMD Radeon RX 580 GPU: Dedicated graphics processing powered by the AMD Radeon RX 580.
• Polaris 20 XL: Uses the Polaris 20 XL GPU architecture.
• 2048 Stream Processors: Provides 2048 stream processors for graphics processing.
• 1206MHz True Clock: GPU engine operates at a 1206MHz true clock.
• 8GB GDDR5 Memory: Equipped with 8GB of GDDR5 graphics memory.
• 256-bit Memory Bus: Uses a 256-bit memory interface.
• 6000MHz Effective Memory Clock: GDDR5 memory operates at an effective 6000MHz.
• PCI Express 3.0: Uses a PCI Express 3.0 interface.
• AMD FreeSync™ Technology: Provides support for fluid, artifact-free gaming with compatible displays.
• Virtual Super Resolution (VSR): Enables higher-resolution rendering on compatible displays.
• AMD Eyefinity Technology: Supports multi-display configurations.
• AMD CrossFire™ Technology: Supports AMD CrossFire technology.
• Frame Rate Target Control (FRTC): Allows the target frame rate to be controlled during gameplay.
• AMD PowerTune: Provides GPU power-management technology.
• AMD ZeroCore Power: Provides power-management functionality.
• AMD TrueAudio Technology: Supports AMD TrueAudio.
• DirectX 12: Supports DirectX 12.
• OpenGL 4.6: Supports OpenGL 4.6.
• Vulkan: Supports Vulkan.
• Shader Model 6.7: Supports Shader Model 6.7.

Technical Specifications

• Brand: ARKTEK
• Model: RX 580 8GB 256bit V3
• SKU / P/N: AKR580D5S8GH1
• GPU: AMD Radeon RX 580
• GPU Code: Polaris 20 XL
• Stream Processors: 2048
• Engine Clock: 1206MHz
• Video Memory: 8GB GDDR5
• Memory Bus: 256-bit
• Memory Clock: 6000MHz effective
• Interface: PCI Express 3.0
• DirectX: DirectX 12
• OpenGL: 4.6
• Shader Model: 6.7

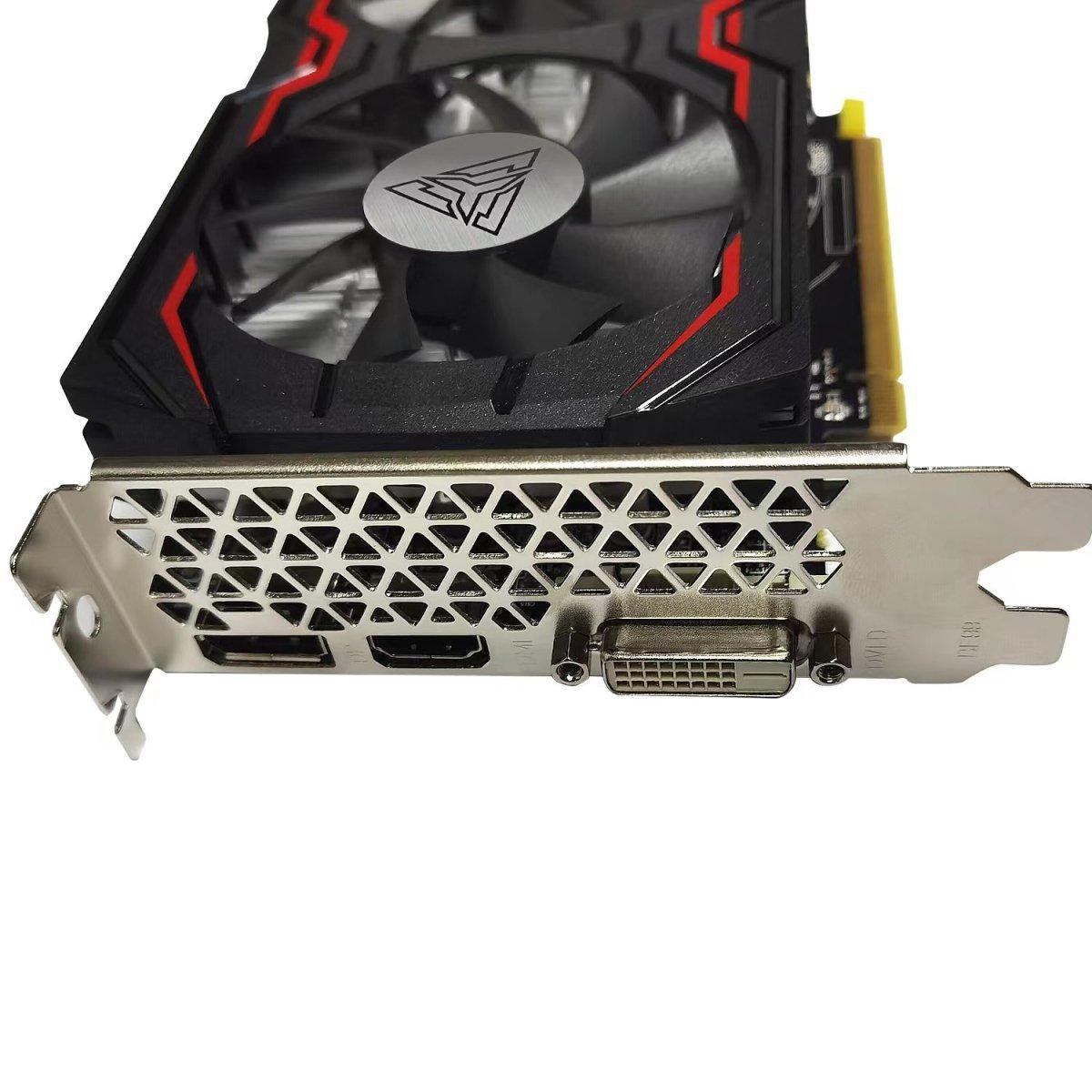

Display Connectivity

The ARKTEK RX 580 8GB 256bit V3 features:

• 1 × DisplayPort
• 1 × Digital Output
• 1 × DVI

The ARKTEK specification lists a maximum resolution of 7680 × 4320 at 60Hz.

AMD Technologies

The RX 580 V3 supports a range of AMD technologies:

• AMD FreeSync™ Technology
• Virtual Super Resolution (VSR)
• AMD Eyefinity Technology
• AMD CrossFire™ Technology
• Frame Rate Target Control (FRTC)
• AMD PowerTune
• AMD ZeroCore Power
• AMD TrueAudio Technology

Gaming Features

ARKTEK describes the RX 580 V3 as offering enhanced performance for online gaming and 1080p HD gaming. Its Virtual Super Resolution technology can provide image quality comparable to higher-resolution rendering on a 1080p display, while AMD FreeSync is designed to provide fluid gameplay with reduced visual artifacts on compatible displays.

Power Requirements

ARKTEK specifies a 350W recommended power supply for the RX 580 8GB 256bit V3. The specified power consumption is 125W.

Operating System Support

The ARKTEK RX 580 8GB 256bit V3 supports:

• Windows 10
• Windows 8
• Windows 7

What’s Included

• 1 × Driver CD
• 1 × User Manual

Product Information

• Brand: ARKTEK
• Product: Radeon RX 580 8GB 256bit V3
• SKU / P/N: AKR580D5S8GH1
• GPU: AMD Radeon RX 580
• Memory: 8GB GDDR5
• Memory Interface: 256-bit
• Engine Clock: 1206MHz
• Memory Clock: 6000MHz effective
• Stream Processors: 2048
• Interface: PCI Express 3.0

Model: AKR580D5S8GH1
Product: ARKTEK Radeon RX 580 8GB 256bit V3 Graphics Card
